Part number: AP1501A
Manufacturer: Anachip
File Size: 205.62KB
Download: 📄 Datasheet

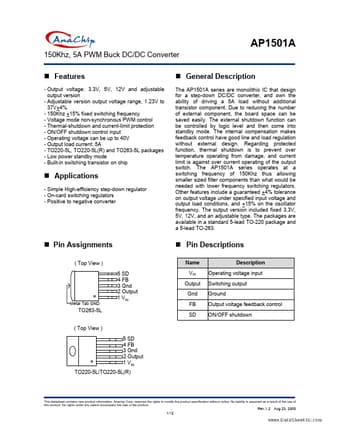

Description: 5A PWM Buck DC/DC Converter
- Output voltage: 3.3V, 5V, 12V and adjustable output version - Adjustable version output voltage range, 1.23V to 37V+4% - 150Khz +15% fixed switching frequency - Voltage.
- Simple High-efficiency step-down regulator - On-card switching regulators - Positive to negative converter
* Pin .
The AP1501A series are monolithic IC that design for a step-down DC/DC converter, and own the ability of driving a 5A load without additional transistor component. Due to reducing the number of external component, the board space can be saved easily..
