AP1503 datasheet, converter equivalent, Anachip

AP1503 Features and benefits

- Output voltage: 3.3V - 300KHz +15% fixed switching frequency - Voltage mode non-synchronous PWM control - Thermal-shutdown and current-limit protection - ON/OFF shutdow.

AP1503 Application

- Simple High-efficiency step-down regulator - On-card switching regulators - Positive to negative converter - DSL Modem.

AP1503 Description

The AP1503 series are monolithic ICs designed for step-down DC/DC converters, and own the ability of driving a 2.5A load without additional transistor components. Due to reducing the number of external component, the board space can be saved easily. .

Image gallery

TAGS

AP1503

Anachip

📁 Related Datasheet

AP1501 - 3A PWM Buck DC/DC Converter (Anachip)
150Khz, 3A PWM Buck DC/DC Converter AP1501 Features - Output voltage: 3.3V, 5V, 12V and adjustable output version - Adjustable version output voltag.

AP1501 - 3A PWM BUCK DC/DC CONVERTER (Diodes Incorporated)
AP1501 150KHZ, 3A PWM BUCK DC/DC CONVERTER Description The AP1501 is a fully integrated step-down DC/DC converter, with the ability to drive 3A load .

AP1501A - 5A PWM Buck DC/DC Converter (Anachip)
AP1501A 150Khz, 5A PWM Buck DC/DC Converter Features - Output voltage: 3.3V, 5V, 12V and adjustable output version - Adjustable version output volta.

AP1501A - 5A PWM BUCK DC/DC CONVERTER (Diodes)
NOT RECOMMENDED FOR NEW DESIGN CONTACT US AP1501A 150kHz, 5A PWM BUCK DC/DC CONVERTER Description The AP1501A series are monolithic ICs that are de.

AP1505 - SINGLE END VOLTAGE MODE PWM CONTROLLER (ETC)
! .

AP1506 - 3A PWM BUCK DC/DC CONVERTER (Diodes Incorporated)
AP1506 150KHz, 3A PWM BUCK DC/DC CONVERTER Description Pin Assignments The AP1506 series are monolithic IC designed for a stepdown DC/DC converter,.

AP1506 - 150KHz/ 3A PWM Buck DC/DC Converter (Anachip)
AP1506 150KHz, 3A PWM Buck DC/DC Converter Features - Output voltag e: 3.3V, 5V, 12 V and adjustable output version - Adjustable version output volt.

AP1507 - 3A PWM BUCK DC/DC CONVERTER (Diodes Incorporated)
NOT RECOMMENDED FOR NEW DESIGN CONTACT US AP1507 150kHz, 3A PWM BUCK DC/DC CONVERTER Description The AP1507 is a monolithic IC designed for a step-.

AP1507 - 3A PWM Buck DC/DC Converter (Anachip)
150KHz, 3A PWM Buck DC/DC Converter AP1507 Features - Output voltage: 3.3V, 5V, 12V and adjustable output version - Adjustable version output volt.

AP1509 - 2A PWM BUCK DC/DC CONVERTER (Diodes Incorporated)
AP1509 150kHz, 2A PWM BUCK DC-DC CONVERTER Description The AP1509 series are monolithic ICs designed for a step-down DC-DC converter and have the abi.

AP1503 Datasheet, converter equivalent, Anachip

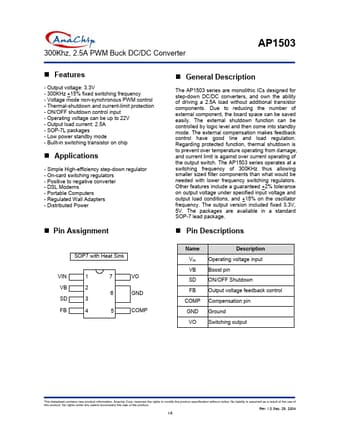

PDF File Details
