AP15N03GI, N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Advanced Power Electronics Corp.AP15N03GI RoHS-compliant Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low Gate Charge D ▼ Simple Drive Requi.
Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cos.

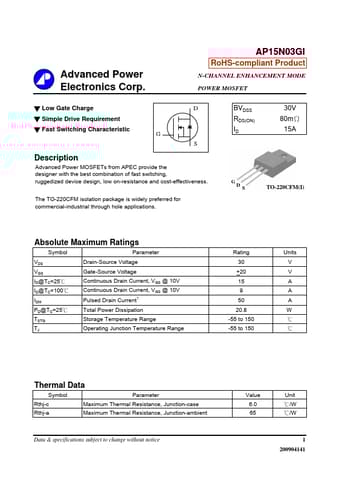

datasheet Preview Page 1 from Datasheet4u.com

AP15N03GI-AdvancedPowerElectronics.pdf

AP15N03GI Datasheet Preview — Preview of AP15N03GI PDF

Datasheet Details

Part number:

AP15N03GI

Manufacturer:

Advanced Power Electronics

File Size:

89.73 KB

Description:

N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* BVDSS RDS(ON) ID 30V 80mΩ 15A GD S TO-220CFM(I) Absolute Maximum Ratings Symbol Parameter VDS Drain-Source Voltage VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃ TSTG TJ Gate-Source Voltage Continuous Drain Current, VGS @ 10V Continuous Drain Current, VGS @ 10V Pulsed Drain Current1 Total Power
