AP1512 - 2A/3A PWM Buck DC/DC Converter

Anachip

📥 Download Datasheet

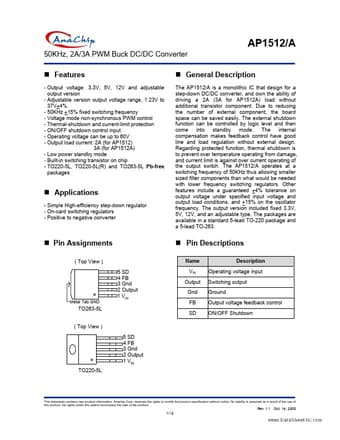

AP1512 Datasheet Preview — Preview of AP1512 PDF

Datasheet Details

Part number: AP1512
Manufacturer: Anachip
File Size: 227.80 KB
Datasheet: AP1512_Anachip.pdf
Description: 2A/3A PWM Buck DC/DC Converter

AP1512 Product details

Description

The AP1512/A is a monolithic IC that design for a step-down DC/DC converter, and own the ability of driving a 2A (3A for AP1512A) load without additional transistor component.

Features

s - Output voltage: 3.3V, 5V, 12V and adjustable output version - Adjustable version output voltage range, 1.23V to 37V+4% - 50KHz +15% fixed switching frequency - Voltage mode non-synchronous PWM control - Thermal-shutdown and current-limit protection - ON/OFF shutdown control input - Operating voltage can be up to 60V - Output load current: 2A (for AP1512) 3A (for AP1512A) - Low power standby mode - Built-in switching transistor on chip - TO220-5L, TO220-5L(R) and TO263-5L Pb-free packages.
