DCX114EH, DCX124EH - Small-Signal Transistor

Diodes Incorporated

📥 Download Datasheet

DCX114EH Datasheet Preview — This datasheet PDF includes multiple part numbers: DCX114EH, DCX124EH. Please refer to the document for exact specifications by model.

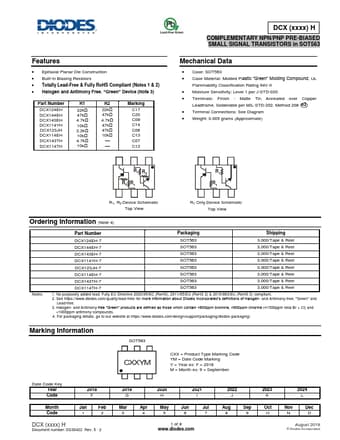

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DCX114EH, DCX124EH
Manufacturer	DIODES ↗ Incorporated
File Size	305.91 KB
Description	Small-Signal Transistor
Datasheet	DCX124EH_DiodesIncorporated.pdf
Note	This datasheet PDF includes multiple part numbers: DCX114EH, DCX124EH. Please refer to the document for exact specifications by model.

DCX114EH Product details

Features

Epitaxial Planar Die Construction.
Built-In Biasing Resistors.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) Part Number DCX124EH DCX144EH DCX143EH DCX114YH DCX123JH DCX114EH DCX143TH DCX114TH R1 22kΩ 47kΩ 4.7kΩ 10kΩ 2.2kΩ 10kΩ 4.7kΩ 10kΩ R2 22kΩ 47kΩ 4.7kΩ 47kΩ 47kΩ 10kΩ   Marking C17 C20 C08 C14 C06 C13 C07 C12 DCX (xxxx) H.
