DCX114TU - Dual Transistor

Diodes Incorporated

📥 Download Datasheet

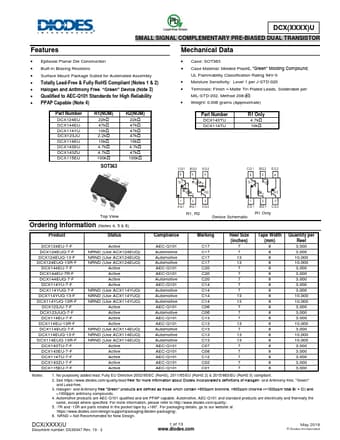

DCX114TU Datasheet Preview — Preview of DCX114TU PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DCX114TU
Manufacturer	DIODES ↗ Incorporated
File Size	921.15 KB
Description	Dual Transistor
Datasheet	DCX114TU_DiodesIncorporated.pdf

DCX114TU Product details

Features

Mechanical Data.
Epitaxial Planar Die Construction.
Built-In Biasing Resistors.
Surface Mount Package Suited for Automated Assembly.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4).
Case: SOT363.
Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0.
Moisture Sens.
