DCX114YK - Dual Transistor

Diodes Incorporated

📥 Download Datasheet

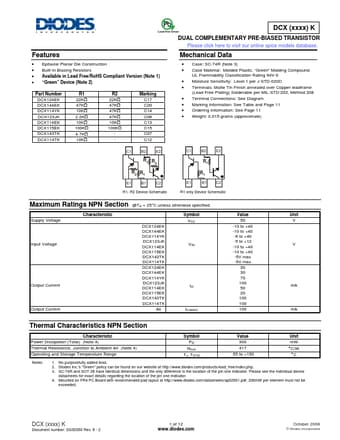

DCX114YK Datasheet Preview — Preview of DCX114YK PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DCX114YK
Manufacturer	DIODES ↗ Incorporated
File Size	475.62 KB
Description	Dual Transistor
Datasheet	DCX114YK_DiodesIncorporated.pdf

DCX114YK Product details

Features

Epitaxial Planar Die Construction.
Built-In Biasing Resistors.
Available in Lead Free/RoHS Compliant Version (Note 1).
“Green” Device (Note 2) Part Number DCX124EK DCX144EK DCX114YK DCX123JK DCX114EK DCX115EK DCX143TK DCX114TK R1 22KΩ 47KΩ 10KΩ 2.2KΩ 10KΩ 100KΩ 4.7KΩ 10KΩ R2 22KΩ 47KΩ 47KΩ 47KΩ 10KΩ 100KΩ - Marking C17 C20 C14 C06 C13 C15 C07 C12 DCX (xxxx) K DUAL.
