GBU601, 6.0A GLASS PASSIVATED BRIDGE RECTIFIER

GBU6005 - GBU610 6.0A GLASS PASSIVATED BRIDGE RECTIFIER .

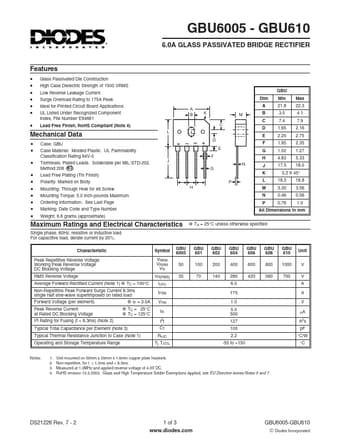

datasheet Preview Page 1 from Datasheet4u.com

GBU601_DiodesIncorporated.pdf

GBU601 Datasheet Preview — Preview of GBU601 PDF

Datasheet Details

Part number:

GBU601

Manufacturer:

DIODES ↗ Incorporated

File Size:

67.59 KB

Description:

6.0A GLASS PASSIVATED BRIDGE RECTIFIER

Features

* Glass Passivated Die Construction
* High Case Dielectric Strength of 1500 VRMS
* Low Reverse Leakage Current
* Surge Overload Rating to 175A Peak

Applications

* UL Listed Under Recognized Component Index, File Number E94661
* Lead Free Finish, RoHS Compliant (Note 4) Mechanical Data
* Case: GBU
* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
* Terminals: Plated Leads. Solderable per MIL-STD-202, Method 208
