PDS5100 - 5A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER

Diodes Incorporated

📥 Download Datasheet

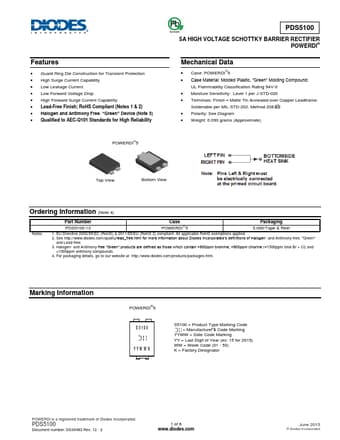

PDS5100 Datasheet Preview — Preview of PDS5100 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PDS5100
Manufacturer	DIODES ↗ Incorporated
File Size	326.52 KB
Description	5A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER
Datasheet	PDS5100_DiodesIncorporated.pdf

PDS5100 Product details

Features

Guard Ring Die Construction for Transient Protection.
High Surge Current Capability.
Low Leakage Current.
Low Forward Voltage Drop.
High Forward Surge Current Capability.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability PDS5100 Green 5A HIGH.
