PDS540Q - 5A SCHOTTKY BARRIER RECTIFIER

PDS540Q Description

PDS540Q Green 5A SCHOTTKY BARRIER RECTIFIER POWERDI® Product Summary VR (V) 40 IF (A) 5.0 VF MAX (V) @ +25°C 0.52 IR MAX (mA) @ +25°C 0.25 Descr.
This Schottky Barrier Rectifier has been designed to meet the stringent requirements of Automotive Applications. Guard Ri.

PDS540Q Features

* Guard Ring Die Construction for Transient Protection
* Low Power Loss, High Efficiency
* Low Forward Voltage Drop

📥 Download Datasheet

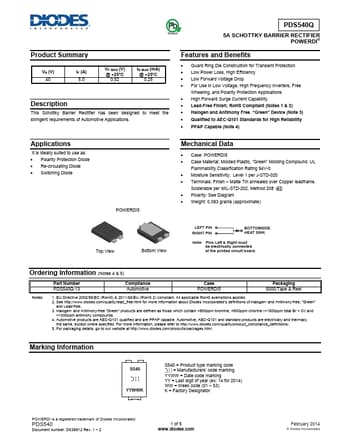

Preview of PDS540Q PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PDS540Q
Manufacturer
DIODES ↗
File Size
207.29 KB
Datasheet
PDS540Q-Diodes.pdf
Description
5A SCHOTTKY BARRIER RECTIFIER
