UG2001 - 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER

UG2001 Description

NOT RECOMMENDED FOR NEW DESIGN UG2001 - UG2007 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER .

UG2001 Features

* Glass Passivated Die Construction
* Ultra-Fast Switching for High Efficiency
* Surge Overload Rating to 60A Peak
* Low Reverse Leakage Current
* Lead Free Finish, RoHS Compliant (Note 4) Mechanical Data
* Case: DO-15
* Case Material: Molded

UG2001 Applications

* shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchase

📥 Download Datasheet

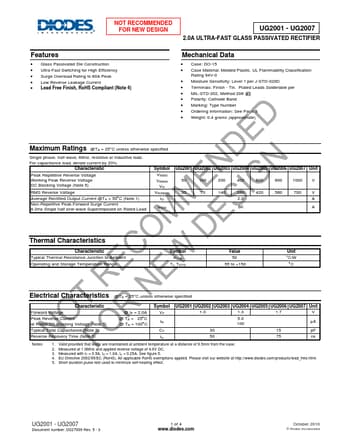

Preview of UG2001 PDF
datasheet Preview Page 2 datasheet Preview Page 3
