UG2006 - 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER

This page provides the datasheet information for the UG2006, a member of the UG2001 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER family.

Features

  • Glass Passivated Die Construction.
  • Ultra-Fast Switching for High Efficiency.
  • Surge Overload Rating to 60A Peak.
  • Low Reverse Leakage Current.
  • Lead Free Finish, RoHS Compliant (Note 4) Mechanical Data.
  • Case: DO-15.
  • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Level 1 per J-STD-020D.
  • Terminals: Finish - Tin. Plated Leads Solderable per.
  • MIL-STD-202, Method.

📥 Download Datasheet

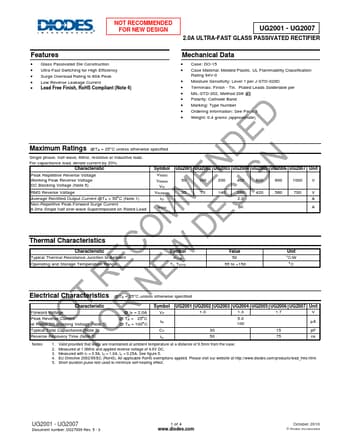

Datasheet preview – UG2006

Datasheet Details

Part number UG2006
Manufacturer Diodes Incorporated
File Size 114.67 KB
Description 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER
Datasheet download datasheet UG2006 Datasheet
Additional preview pages of the UG2006 datasheet.

📁 Similar Datasheet

  • UG2006 - ULTRA FAST GLASS PASSIVATED RECTIFIERS (LITE-ON)
  • UG2001 - ULTRA FAST GLASS PASSIVATED RECTIFIERS (LITE-ON)
  • UG2002 - ULTRA FAST GLASS PASSIVATED RECTIFIERS (LITE-ON)
  • UG2003 - ULTRA FAST GLASS PASSIVATED RECTIFIERS (LITE-ON)
  • UG2004 - ULTRA FAST GLASS PASSIVATED RECTIFIERS (LITE-ON)
  • UG2004PT - 200V High Power Density Ultra Fast Rectifier (Taiwan Semiconductor)
  • UG2004PT - Ultrafast Rectifier (INCHANGE)
  • UG2005 - ULTRA FAST GLASS PASSIVATED RECTIFIERS (LITE-ON)
  • UG2007 - ULTRA FAST GLASS PASSIVATED RECTIFIERS (LITE-ON)
  • UG25N120 - NPT TRENCH IGBT (Unisonic Technologies)
Other Datasheets by Diodes Incorporated
  • UG2001 - 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER
  • UG2002 - 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER
  • UG2003 - 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER
  • UG2004 - 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER
  • UG2005 - 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER
  • UG2007 - 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER

Full PDF Text Transcription

Click to expand full text
NOT RECOMMENDED FOR NEW DESIGN UG2001 - UG2007 2.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER Features • Glass Passivated Die Construction • Ultra-Fast Switching for High Efficiency • Surge Overload Rating to 60A Peak • Low Reverse Leakage Current • Lead Free Finish, RoHS Compliant (Note 4) Mechanical Data • Case: DO-15 • Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020D • Terminals: Finish - Tin. Plated Leads Solderable per • MIL-STD-202, Method 208 • Polarity: Cathode Band • Marking: Type Number • Ordering Information: See Page 3 • Weight: 0.4 grams (approximate) Maximum Ratings @TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load.
