UG3004 - 3.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER

Product Overview

Diodes Incorporated

📥 Download Datasheet

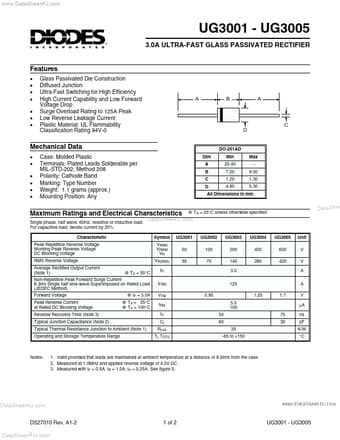

UG3004 3.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER by Diodes Incorporated - Datasheet Preview — Datasheet preview – UG3004

Datasheet Details

Part number	UG3004
Manufacturer	DIODES Incorporated
File Size	224.15 KB
Description	3.0A ULTRA-FAST GLASS PASSIVATED RECTIFIER
Datasheet	UG3004 Datasheet
Note	This datasheet PDF includes multiple part numbers: UG3004, UG3001. Please refer to the document for exact specifications by model.
Additional preview pages of the UG3004 datasheet.

Product details

Features

Glass Passivated Die Construction Diffused Junction Ultra-Fast Switching for High Efficiency High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 125A Peak Low Reverse Leakage Current Plastic Material: UL Flammability Classification Rating 94V-0 A B A D C Mechanical Data.
Case: Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Marking: Typ.
