UG30CPT - ULTRAFAST EFFICIENT PLASTIC RECTIFIER

Product Overview

General Semiconductor

📥 Download Datasheet

UG30CPT ULTRAFAST EFFICIENT PLASTIC RECTIFIER by General Semiconductor - Datasheet Preview — Datasheet preview – UG30CPT

Datasheet Details

Part number	UG30CPT
Manufacturer	General Semiconductor
File Size	233.24 KB
Description	ULTRAFAST EFFICIENT PLASTIC RECTIFIER
Datasheet	UG30CPT Datasheet
Note	This datasheet PDF includes multiple part numbers: UG30CPT, UG30APT. Please refer to the document for exact specifications by model.

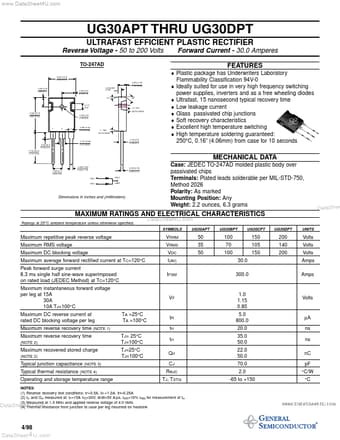

Additional preview pages of the UG30CPT datasheet.

Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Ideally suited for use in very high frequency switching power supplies, inverters and as a free wheeling diodes.
Ultrafast, 15 nanosecond typical recovery time.
Low leakage current.
Glass passivated chip junctions.
Soft recovery characteristics.
Excellent high temperature switching.
High temperature soldering guaranteed: 250°C, 0.16” (4.06mm) fro.
