UG30APT - ULTRAFAST EFFICIENT PLASTIC RECTIFIER

Product Overview

General Semiconductor

📥 Download Datasheet

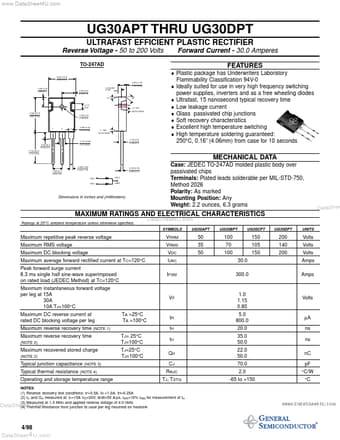

UG30APT ULTRAFAST EFFICIENT PLASTIC RECTIFIER by General Semiconductor - Datasheet Preview — Datasheet preview – UG30APT

Datasheet Details

Part number	UG30APT
Manufacturer	General Semiconductor
File Size	233.24 KB
Description	ULTRAFAST EFFICIENT PLASTIC RECTIFIER
Datasheet	UG30APT Datasheet
Additional preview pages of the UG30APT datasheet.

Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Ideally suited for use in very high frequency switching power supplies, inverters and as a free wheeling diodes.
Ultrafast, 15 nanosecond typical recovery time.
Low leakage current.
Glass passivated chip junctions.
Soft recovery characteristics.
Excellent high temperature switching.
High temperature soldering guaranteed: 250°C, 0.16” (4.06mm) fro.
