74AHCT125S14, 74AHCT125, QUADRUPLE 3-STATE BUFFER

NEW PRODUCT 74AHCT125 QUADRUPLE 3-STATE BUFFERS OE LOW .
The 74AHCT125 provides provides four independent buffer gates with 3-state outputs.

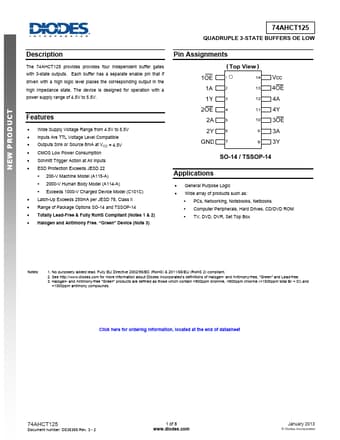

datasheet Preview Page 1 from Datasheet4u.com

74AHCT125-Diodes.pdf

74AHCT125S14 Datasheet Preview — This datasheet PDF includes multiple part numbers: 74AHCT125S14, 74AHCT125. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

74AHCT125S14, 74AHCT125

Manufacturer:

DIODES ↗

File Size:

299.19 KB

Description:

QUADRUPLE 3-STATE BUFFER

Note:

This datasheet PDF includes multiple part numbers: 74AHCT125S14, 74AHCT125.
Please refer to the document for exact specifications by model.

Features

* Wide Supply Voltage Range from 4.5V to 5.5V
* Inputs Are TTL Voltage Level Compatible
* Outputs Sink or Source 8mA at VCC = 4.5V
* CMOS Low Power Consumption
* Schmitt Trigger Action at All Inputs
* ESD Protection Exceeds JESD 22
* 200-V Machine

Applications

* General Purpose Logic
* Wide array of products such as:
* PCs, Networking, Notebooks, Netbooks
* Computer Peripherals, Hard Drives, CD/DVD ROM
* TV, DVD, DVR, Set Top Box Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) com
