74AHCT125T14 - QUADRUPLE 3-STATE BUFFER

The 74AHCT125 provides provides four independent buffer gates with 3-state outputs.

Each buffer has a separate enable pin that if driven with a high logic level places the corresponding output in the high impedance state.

The device is designed for operation with a power supply range of 4.5V to 5.5V

74AHCT125T14 Features

* Wide Supply Voltage Range from 4.5V to 5.5V

* Inputs Are TTL Voltage Level Compatible

* Outputs Sink or Source 8mA at VCC = 4.5V

* CMOS Low Power Consumption

* Schmitt Trigger Action at All Inputs

* ESD Protection Exceeds JESD 22

* 200-V Machine

74AHCT125-Diodes.pdf

This datasheet PDF includes multiple part numbers: 74AHCT125T14, 74AHCT125. Please refer to the document for exact specifications by model.

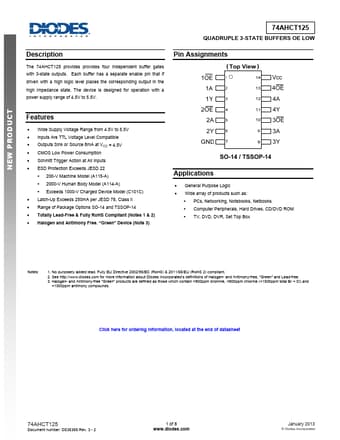

74AHCT125T14 Datasheet Preview Page 2 74AHCT125T14 Datasheet Preview Page 3
