74HCT125 - QUADRUPLE 3-STATE BUFFERS

74HCT125 Description

74HCT125 QUADRUPLE 3-STATE BUFFERS OE LOW .
The 74HCT125 provides provides four independent buffer gates with 3-state outputs.

74HCT125 Features

* Wide Supply Voltage Range from 4.5V to 5.5V
* Pin Compatible with Low Power Schottky (LSTTL)
* Inputs Are TTL Voltage Level Compatible
* Sinks or Sources 4mA at VCC = 4.5V
* CMOS Low Power Consumption
* Schmitt Trigger Action at All Inputs

74HCT125 Applications

* General Purpose Logic
* Wide array of products such as:
* PCs, networking, notebooks, netbooks
* Computer peripherals, hard drives, CD/DVD ROM
* TV, DVD, DVR, set top box Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) com

📥 Download Datasheet

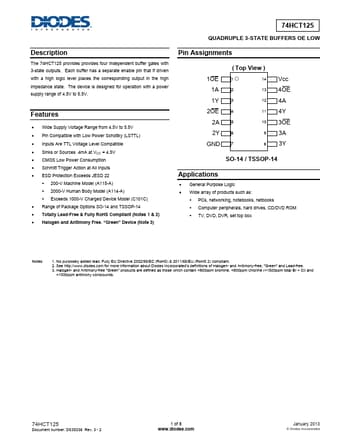

Preview of 74HCT125 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
74HCT125
Manufacturer
DIODES ↗
File Size
273.68 KB
Datasheet
74HCT125-Diodes.pdf
Description
QUADRUPLE 3-STATE BUFFERS
