74HCT123D

Dual retriggerable monostable multivibrator

74HCT123D Features

* Wide supply voltage range from 2.0 V to 6.0 V

* CMOS low power dissipation

* High noise immunity

* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

* Complies with JEDEC standards:

* JESD8C (2.7 V to 3.6 V)

* JESD7A (2.0 V to

74HCT123D General Description

The 74HC123; 74HCT123 is a dual retriggerable monostable multivibrator with reset. The basic output pulse width is programmed by selection of external components (REXT and CEXT). Once triggered this basic pulse width may be extended by retriggering either of the edge triggered inputs (nA or nB). By .

74HCT123D Datasheet (317.40 KB)

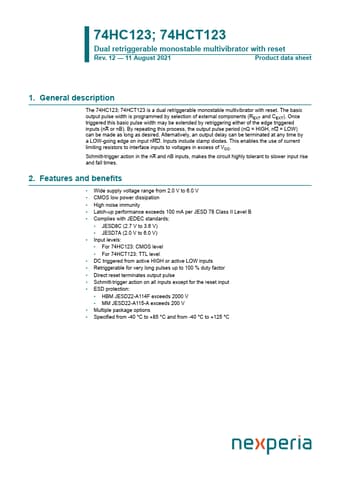

Preview of 74HCT123D PDF

Datasheet Details

Part number:

74HCT123D

Manufacturer:

nexperia ↗

File Size:

317.40 KB

Description:

Dual retriggerable monostable multivibrator.
74HC123; 74HCT123 Dual retriggerable monostable multivibrator with reset Rev. 12 11 August 2021 Product data sheet 1. General descriptio.
