74HCT10 Datasheet - Philips

Triple 3-input NAND gate

74HCT10 General Description

74HC/HCT10 The 74HC/HCT10 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT10 provide the 3-input NAND function. QUICK REFERENCE DATA GND = 0 V; Tamb = 25 °C; tr = tf = 6 ns TYPI.

74HCT10 Datasheet (34.30 KB)

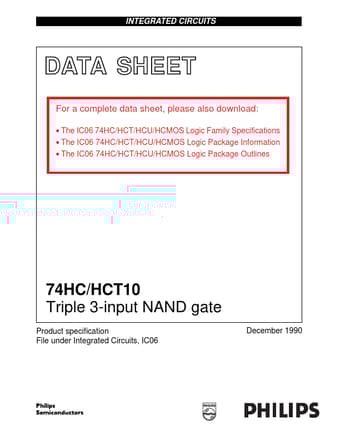

74HCT10 Datasheet Preview — Preview of 74HCT10 PDF

Datasheet Details

Part number:

74HCT10

Manufacturer:

Philips

File Size:

34.30 KB

Description:

Triple 3-input nand gate.
INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download: The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications
