74HCT123DB Dual retriggerable monostable multivibrator

The 74HC123; 74HCT123 is a dual retriggerable monostable multivibrator with reset. The basic output pulse width is programmed by selection of external components (REXT and CEXT). Once triggered this basic pulse width may be extended by retriggering either of the edge triggered inputs (nA or nB). By .

74HCT123DB Features

* Wide supply voltage range from 2.0 V to 6.0 V

* CMOS low power dissipation

* High noise immunity

* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

* Complies with JEDEC standards:

* JESD8C (2.7 V to 3.6 V)

* JESD7A (2.0 V to

74HC123-nexperia.pdf

This datasheet PDF includes multiple part numbers: 74HCT123DB, 74HC123. Please refer to the document for exact specifications by model.

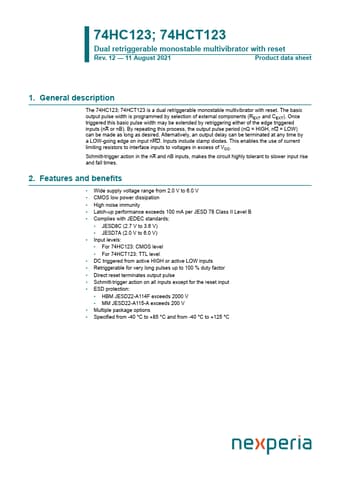

74HCT123DB Datasheet Preview Page 2 74HCT123DB Datasheet Preview Page 3

Datasheet Details

Part number:

74HCT123DB, 74HC123

Manufacturer:

nexperia ↗

File Size:

317.40 KB

Description:

Dual retriggerable monostable multivibrator.

Note:

This datasheet PDF includes multiple part numbers: 74HCT123DB, 74HC123.
Please refer to the document for exact specifications by model.
