74LVC373A Datasheet, Latch, Diodes

74LVC373A Features

  • Latch
  • Supply Voltage Range from 1.65V to 3.6V
  • Sinks or Sources 24mA at VCC = 3V
  • CMOS Low Power Consumption
  • IOFF Supports Partial Power Down Operation <

PDF File Details

Part number:

74LVC373A

Manufacturer:

DIODES ↗

File Size:

436.23kb

Download:

📄 Datasheet

Description:

Octal transparent d-type latch. The 74LVC373A provides eight transparent D-type latches. While the latch-enable (LE) input is high, the Q outputs follow the data (D)

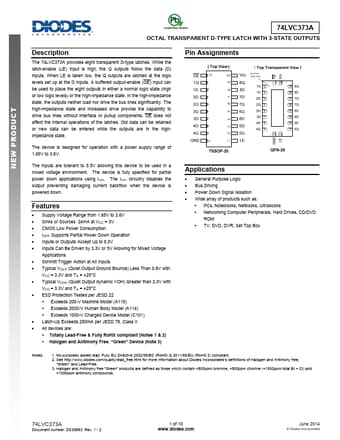

Datasheet Preview: 74LVC373A 📥 Download PDF (436.23kb)
Page 2 of 74LVC373A Page 3 of 74LVC373A

74LVC373A Application

  • Applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. Features
