74LVC32A

QUADRUPLE 2-INPUT OR GATES

Diodes

74LVC32A Features

* Supply Voltage Range from 1.65V to 3.6V

* Sinks 24mA at VCC = 3.3V

* CMOS low power consumption

* IOFF Supports Partial-Power-Down Mode Operation

* Inputs or outputs accept up to 5.5V

* Inputs can be driven by 3.3V or 5.5V allowing for voltage transl

74LVC32A General Description

The 74LVC32A provides four independent 2-input OR gates. The device is designed for operation with a power supply range of 1.65V to 3.6V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications .

74LVC32A Datasheet (282.55 KB)

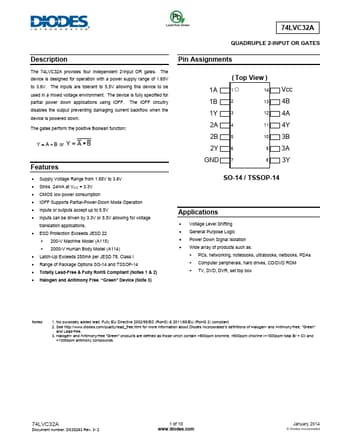

74LVC32A Datasheet Preview — Preview of 74LVC32A PDF

Datasheet Details

Part number:

74LVC32A

Manufacturer:

DIODES ↗

File Size:

282.55 KB

Description:

Quadruple 2-input or gates.
