74LVC32APQ, 74LVC32A, Quad 2-input OR gate

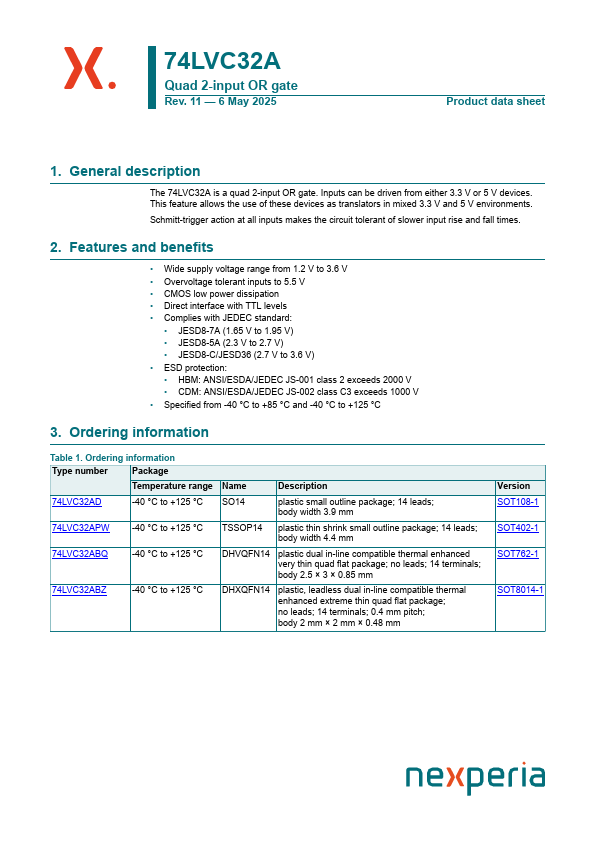

74LVC32A Quad 2-input OR gate Rev.11 * 6 May 2025 Product data sheet 1.General .
The 74LVC32A is a quad 2-input OR gate.

datasheet Preview Page 1 from Datasheet4u.com

74LVC32A-nexperia.pdf

74LVC32APQ Datasheet Preview — This datasheet PDF includes multiple part numbers: 74LVC32APQ, 74LVC32A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

74LVC32APQ, 74LVC32A

Manufacturer:

nexperia ↗

File Size:

253.77 KB

Description:

Quad 2-input OR gate

Note:

This datasheet PDF includes multiple part numbers: 74LVC32APQ, 74LVC32A.
Please refer to the document for exact specifications by model.

Features

* Wide supply voltage range from 1.2 V to 3.6 V
* Overvoltage tolerant inputs to 5.5 V
* CMOS low power dissipation
* Direct interface with TTL levels
* Complies with JEDEC standard:
* JESD8-7A (1.65 V to 1.95 V)
* JESD8-5A (2.3 V to 2.7 V)
