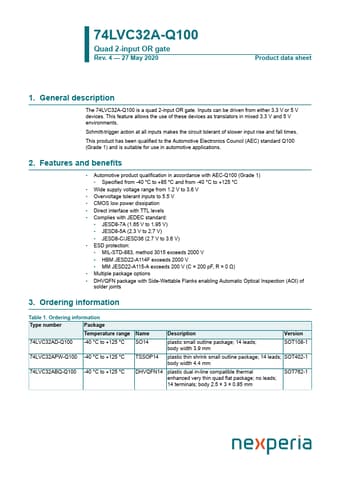

74LVC32A-Q100 Datasheet Preview — Preview of 74LVC32A-Q100 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 74LVC32A-Q100
Manufacturer: nexperia ↗
File Size: 218.64 KB
Datasheet: 74LVC32A-Q100-nexperia.pdf
Description: Quad 2-input OR gate

74LVC32A-Q100 Product details

Description

The 74LVC32A-Q100 is a quad 2-input OR gate.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range from 1.2 V to 3.6 V.
Overvoltage tolerant inputs to 5.5 V.
CMOS low power dissipation.
Direct interface with TTL levels.
Complies with JEDEC standard:.
JESD8-7A (1.65 V to 1.95 V).
JESD8-5A (2.3 V to 2.7 V).
JESD8-C/JESD36 (2.7 V to 3.6 V).
E.
