74LVC32A Datasheet - NXP

74LVC32A, Quad 2-input OR gate

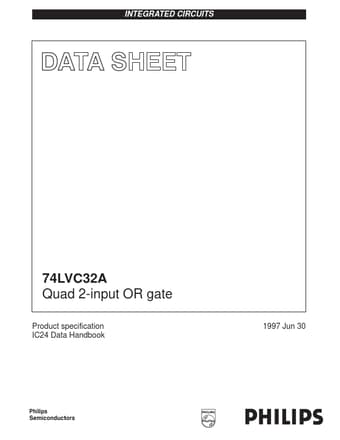

INTEGRATED CIRCUITS 74LVC32A Quad 2-input OR gate Product specification IC24 Data Handbook 1997 Jun 30 Philips Semiconductors Philips Semiconductor.
The 74LVC32A is a high-performance, low-power, low-voltage Si-gate CMOS device and superior to most advanced CMOS compatible TTL families.

datasheet Preview Page 1 from Datasheet4u.com

74LVC32A_PhilipsSemiconductors.pdf

74LVC32A Datasheet Preview — Preview of 74LVC32A PDF

Datasheet Details

Part number:

74LVC32A

Manufacturer:

NXP ↗

File Size:

87.39 KB

Description:

Quad 2-input OR gate

Features

* Wide supply voltage range of 1.2 V to 3.6 V
* In accordance with JEDEC standard no. 8-1A.
* Inputs accept voltages up to 5.5 V
* CMOS low power consumption
* Direct interface with TTL levels QUICK REFERENCE DATA GND = 0 V; Tamb = 25°C; tr = tf ≤ 2.5 ns SYMB

Applications

* DC input voltage range DC output voltage range; output HIGH or LOW state Operating ambient temperature range in free-air Input rise and fall times VCC = 1.2 to 2.7V VCC = 2.7 to 3.6V CONDITIONS MIN 2.7 1.2 0 0
* 40 0 0 MAX 3.6 3.6 5.5 VCC +85 20 10 UNIT V V V V °C ns/V ABSOLUTE MAXIMUM RATI
