74LVC32ABZ, 74LVC32A - Quad 2-input OR gate

nexperia

📥 Download Datasheet

74LVC32ABZ Datasheet Preview — This datasheet PDF includes multiple part numbers: 74LVC32ABZ, 74LVC32A. Please refer to the document for exact specifications by model.

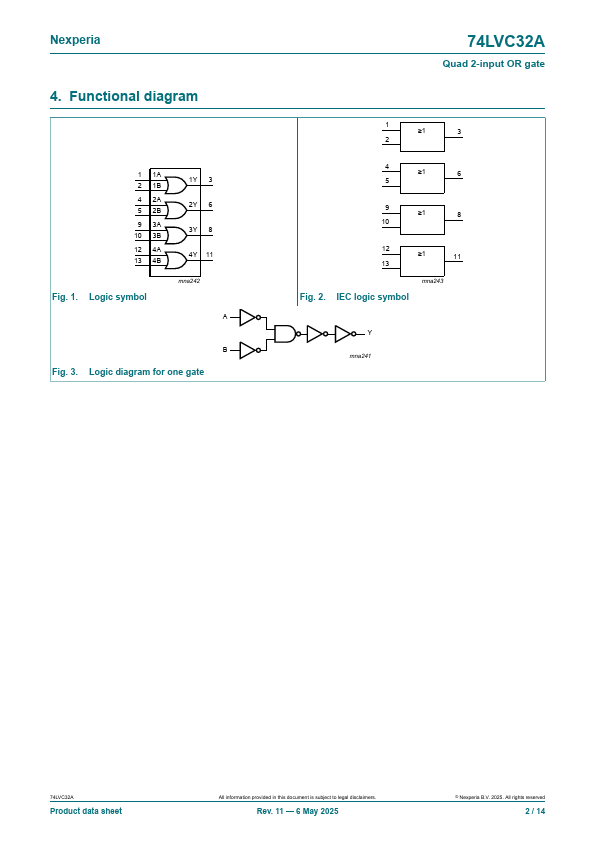

datasheet Preview Page 2

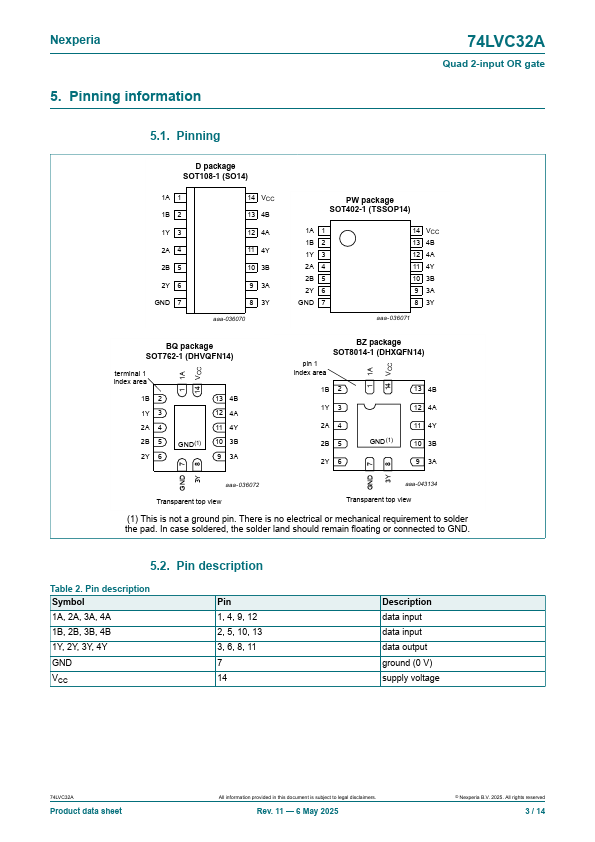

datasheet Preview Page 3

Datasheet Details

Part number: 74LVC32ABZ, 74LVC32A
Manufacturer: nexperia ↗
File Size: 248.01 KB
Datasheet: 74LVC32A-nexperia.pdf
Description: Quad 2-input OR gate
Note: This datasheet PDF includes multiple part numbers: 74LVC32ABZ, 74LVC32A.
Please refer to the document for exact specifications by model.

74LVC32ABZ Product details

Description

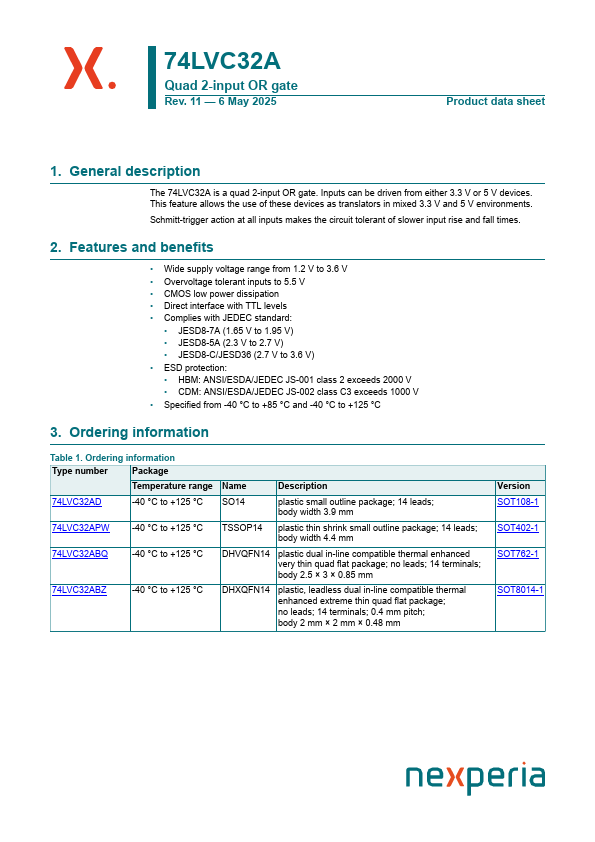

The 74LVC32A is a quad 2-input OR gate.

Features

Wide supply voltage range from 1.2 V to 3.6 V.
Overvoltage tolerant inputs to 5.5 V.
CMOS low power dissipation.
Direct interface with TTL levels.
Complies with JEDEC standard:.
JESD8-7A (1.65 V to 1.95 V).
JESD8-5A (2.3 V to 2.7 V).
JESD8-C/JESD36 (2.7 V to 3.6 V).
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V.
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V.
Sp.
