Part number: AL3022
Manufacturer: DIODES (https://www.diodes.com/)
File Size: 372.74KB
Download: 📄 Datasheet

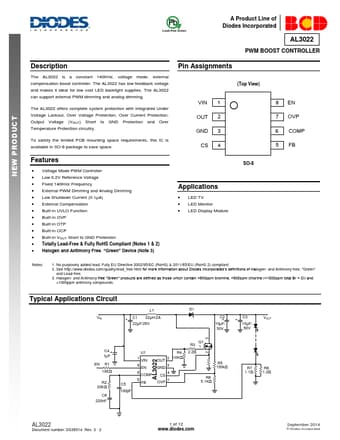

Description: PWM BOOST CONTROLLER
* Voltage Mode PWM Controller
* Low 0.2V Reference Voltage
* Fixed 140KHz Frequency
* External PWM Dimming and Analog Dimming
* Low Shutdown Current (.
* LED TV
* LED Monitor
* LED Display Module
8 EN 7 OVP 6 COMP 5 FB
Notes:
1. No purposely added lead. Ful.
The AL3022 is a constant 140KHz, voltage mode, external compensation boost controller. The AL3022 has low feedback voltage and makes it ideal for low cost LED backlight supplies. The AL3022 can support external PWM dimming and analog dimming.
The AL3.
