AL8807Q - HIGH EFFICIENCY LOW 30V 1.3A AUTOMOTIVE GRADE BUCK LED DRIVER

Datasheet Summary

Description

The AL8807Q is a step-down DC/DC converter designed to drive LEDs with a constant current.

Depending on the forward voltage of the LEDs, the device can drive up to nine LEDs in series from a voltage source of 6V to 30V.

Features

  • LED Driving Current up to 1.3A.
  • Better than 5% Accuracy.
  • High Efficiency up to 96%.
  • Optimally Controlled Switching Speeds.
  • Operating Input Voltage from 6V to 30V.
  • PWM/DC Input for Dimming Control.
  • Built-in Output Open-Circuit Protection.
  • Automotive Grade with AEC-Q100 Qualification.
  • MSOP-8EP: Available in “Green” Molding Compound (No Br, Sb).
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).

📥 Download Datasheet

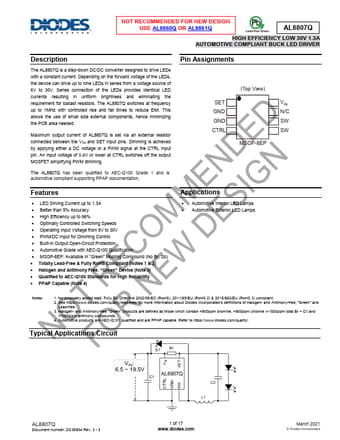

Datasheet preview – AL8807Q

Datasheet Details

Part number AL8807Q
Manufacturer DIODES
File Size 1.15 MB
Description HIGH EFFICIENCY LOW 30V 1.3A AUTOMOTIVE GRADE BUCK LED DRIVER
Datasheet download datasheet AL8807Q Datasheet
Additional preview pages of the AL8807Q datasheet.

📁 Similar Datasheet

  • AL8807 - HIGH EFFICIENCY LOW 36V 1A BUCK LED DRIVER (Diodes Incorporated)
  • AL8805 - HIGH EFFICIENCY 30V 1A BUCK LED DRIVER (Diodes Incorporated)
  • AL8806 - HIGH EFFICIENCY 36V 1.5A BUCK LED DRIVER (Diodes Incorporated)
  • AL808T1000 - 808nm High-Power Laser Diode (ETC)
  • AL8400 - LINEAR LED DRIVER-CONTROLLER (Diodes Incorporated)
  • AL860 - ENDPENTODE (RFT)
  • AL875 - Triple High Speed/ 8-bit Analog-to-Digital Converter (ETC)
  • AL875 - High Speed Triple 8-bit ADC (AverLogic Technologies)
Other Datasheets by Diodes
  • AL8807A - BUCK LED DRIVER
  • AL8807B - HIGH EFFICIENCY 36V 1.3A PWM DIMMABLE BUCK LED DRIVER
  • AL8807BQ - AUTOMOTIVE GRADE 30V 1.3A PWM DIMMABLE BUCK LED DRIVER
  • AL8806Q - AUTOMOTIVE GRADE BUCK LED DRIVER
  • AL8808 - COST EFFECTIVE LOW EMI 30V 1A BUCK LED DRIVER
  • AL8811 - Boost/Buck/Inverting DC-DC CONVERTER
  • AL8812 - BOOST/BUCK DC-DC CONVERTER
  • AL8820 - 2A BOOST/BUCK LED DRIVER

Full PDF Text Transcription

Click to expand full text
NOT RECOMMENDED FOR NEW DESIGN USE AL8860Q OR AL8861Q AL8807Q HIGH EFFICIENCY LOW 30V 1.3A AUTOMOTIVE COMPLIANT BUCK LED DRIVER Description Pin Assignments The AL8807Q is a step-down DC/DC converter designed to drive LEDs with a constant current. Depending on the forward voltage of the LEDs, the device can drive up to nine LEDs in series from a voltage source of 6V to 30V. Series connection of the LEDs provides identical LED currents resulting in uniform brightness and eliminating the requirement for ballast resistors. The AL8807Q switches at frequency up to 1MHz with controlled rise and fall times to reduce EMI. This allows the use of small size external components, hence minimizing the PCB area needed.
