AP3429 2A STEP-DOWN DC-DC BUCK CONVERTER

AP3429 Description

NOT RECOMMENDED FOR NEW DESIGN NO ALTERNATE PART AP3429/A 1.0MHZ, 2A STEP-DOWN DC-DC BUCK CONVERTER .
The AP3429/A is a 2A step-down DC-DC converter.

AP3429 Features

* include over-temperature and short circuit protection, and under-voltage lockout to prevent deep battery discharge. The AP3429/A delivers 2A maximum output current while consuming only 90μA of no-load quiescent current. Ultra-low RDS(ON) integrated MOSFETs and 100% duty cycle operation make the AP34

AP3429 Applications

* which require a low dropout threshold. The AP3429/A is available in TSOT25 package. Applications
* 5V or 3.3V Point of Load Conversion
* Telecom/Networking Equipment
* Set Top Boxes
* Storage Equipment
* Video Cards
* DDR Power Supply Pin Assignments

📥 Download Datasheet

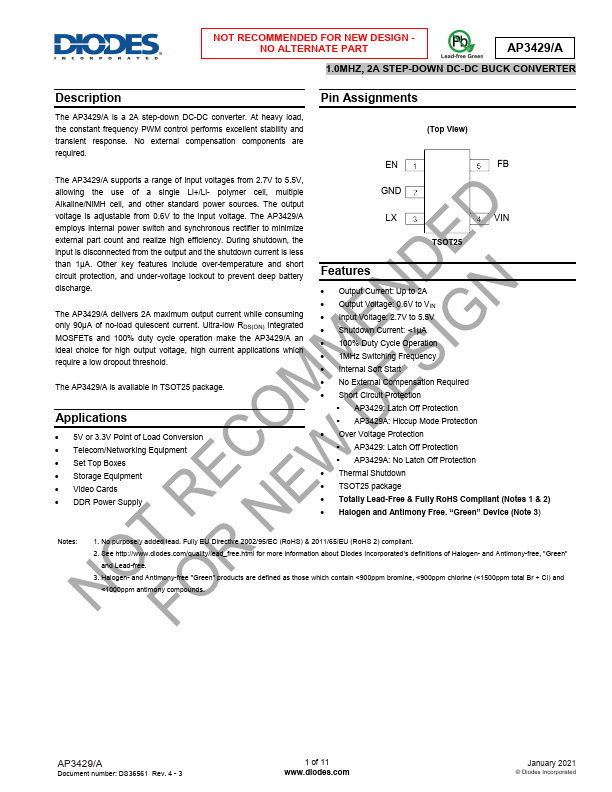

Preview of AP3429 PDF

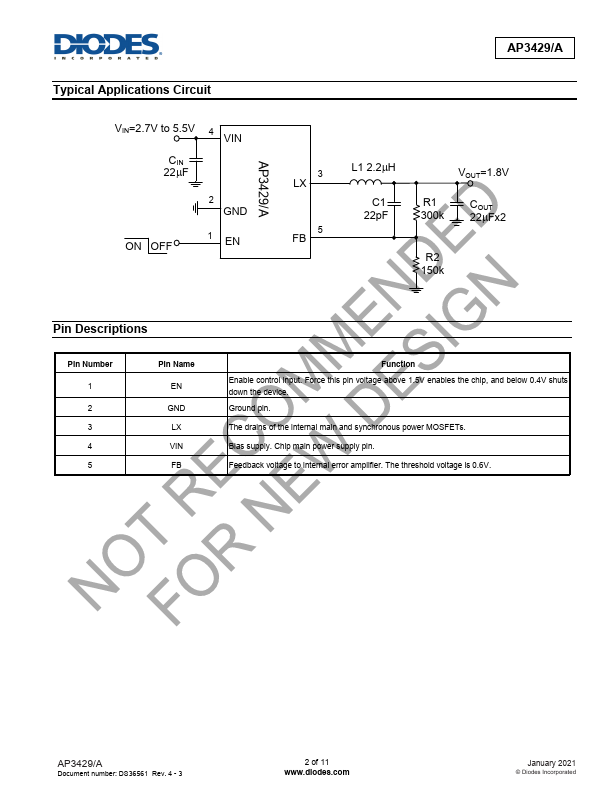

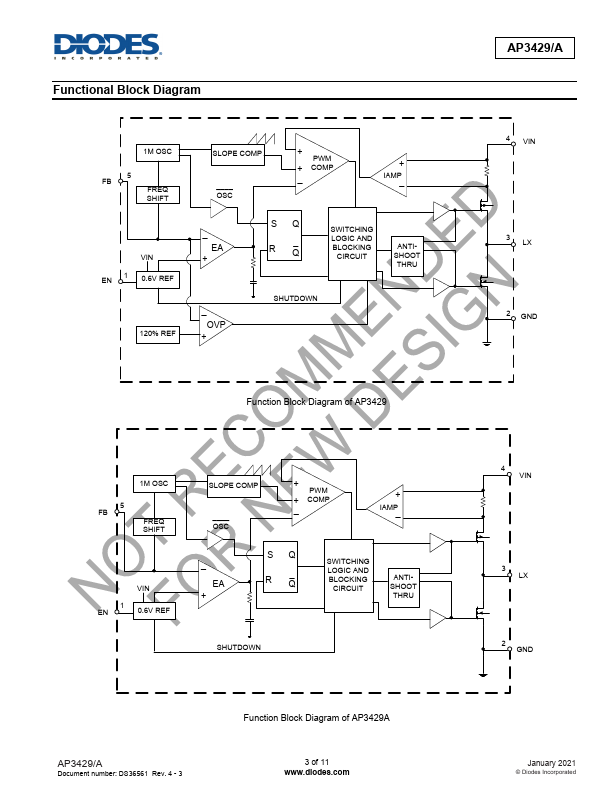

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP3429
Manufacturer
DIODES ↗
File Size
613.71 KB
Datasheet
AP3429-Diodes.pdf
Description
2A STEP-DOWN DC-DC BUCK CONVERTER
