AP4310E DUAL OP AMP AND VOLTAGE REFERENCE

The AP4310E is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies Pin Assignments (Top View) The device contains two Op Amps and a 2.5V precision shunt voltage reference. Op Amp 1 is designed for voltage control .

AP4310E Features

* increased precision with a corresponding reduction in system complexity and cost. AP4310E has more stringent reference voltage tolerance and offset. The AP4310E is available in standard package of SO-8. OUTPUT 1 1 INPUT 1- 2 INPUT 1+/VKA 3 GND 4 SO-8 8 VCC 7 OUTPUT 2 6 INPUT 25 INPUT 2+ Applicati

AP4310E-Diodes.pdf

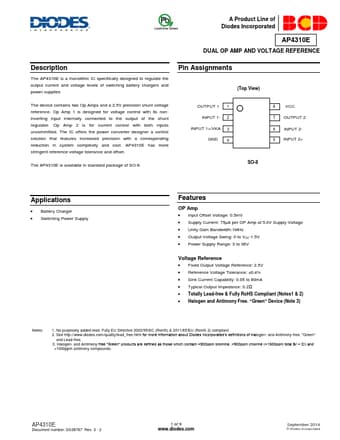

Preview of AP4310E PDF
AP4310E Datasheet Preview Page 2 AP4310E Datasheet Preview Page 3

Datasheet Details

Part number:

AP4310E

Manufacturer:

DIODES ↗

File Size:

350.45 KB

Description:

Dual op amp and voltage reference.
