AR2003FV

ACTIVE/SYNCHRONOUS RECTIFICATION CONTROLLER

AR2003FV Features

* of this IC are the Minimum Off Time (TOFF) and Minimum on Time (TON), these features blank the noise generated during the turn on and turn off instances of the power FET. Light load detection for improved efficiency at light and no load is implemented. Other features include Under Voltage Lock Out (

AR2003FV General Description

The AR2003FV is Active/Synchronous Rectification Controller, providing output voltage from 4.5V to 21V. Using internal drain-tosource voltage sensing, the AR2003FV is ideal for Fly-back, LLCresonant and other power supply architectures. It has SFB pin that can eliminate the external feedback resisto.

AR2003FV Datasheet (654.05 KB)

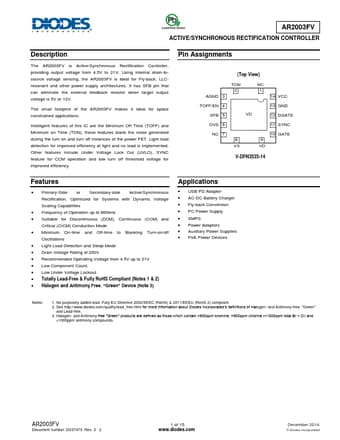

Preview of AR2003FV PDF

Datasheet Details

Part number:

AR2003FV

Manufacturer:

DIODES ↗

File Size:

654.05 KB

Description:

Active/synchronous rectification controller.
