AR2316

Single Chip MAC/Baseband/Radio and Processor

AR2316 Features

* include forward error correction coding at rates for 1/2, 2/3, and 3/4, signal detection, automatic gain control, frequency offset estimation, symbol timing, channel estimation, error recovery, enhanced security, and quality of service (QoS). The AR2316 performs receive and transmit filtering for IE

AR2316 General Description

The Atheros AR2316 integrated the MAC/ baseband/radio and processor into a single chip for wireless access point and router applications. It includes a 2.4 GHz radio, MIPS 4000 processor, 802.11 MAC/baseband processor, 802.3 Ethernet MAC and MII interface, SDRAM controller, external memory interface.

AR2316 Datasheet (924.64 KB)

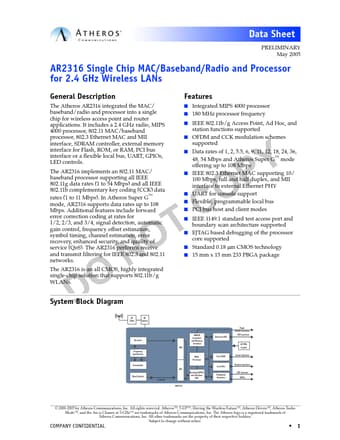

Preview of AR2316 PDF

Datasheet Details

Part number:

AR2316

Manufacturer:

Atheros

File Size:

924.64 KB

Description:

Single chip mac/baseband/radio and processor.
