BAV116HWFQ SURFACE MOUNT LOW LEAKAGE DIODE

BAV116HWFQ Description

ADVANCED INFORMATION BAV116HWFQ SURFACE MOUNT LOW LEAKAGE DIODE Product Summary (@TA = +25°C) VR IR 85V 5nA trr 3µs .
The BAV116HWFQ is an 85V, 5nA and 3µs switching diode that is optimized for ultra-low leakage current. Ultra Low Leakage Current (5nA.

BAV116HWFQ Features

* Ultra Low Leakage Current (5nA @ VR = 75V)
* Flat Leadframe Design for Improved Thermal Transfer
* Low Capacitance
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliab

BAV116HWFQ Applications

* It is ideally suited for use in applications such as the following:
* Mobile
* Portable Electronics
* Consumer Electronics
* Automotive Mechanical Data
* Case: SOD123F
* Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0

📥 Download Datasheet

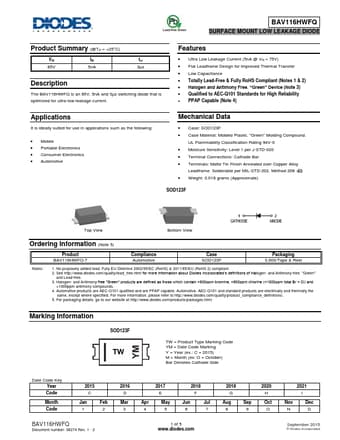

Preview of BAV116HWFQ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAV116HWFQ
Manufacturer
DIODES ↗
File Size
312.29 KB
Datasheet
BAV116HWFQ-Diodes.pdf
Description
SURFACE MOUNT LOW LEAKAGE DIODE
