BAV23A SURFACE MOUNT HIGH VOLTAGE DUAL SWITCHING DIODE

BAV23A Description

BAV23A/C/S SURFACE MOUNT HIGH VOLTAGE DUAL SWITCHING DIODE .

BAV23A Features

* Fast Switching Speed

BAV23A Applications

* High Reverse Breakdown Voltage
* Low Leakage Current
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www. diodes. com/q

📥 Download Datasheet

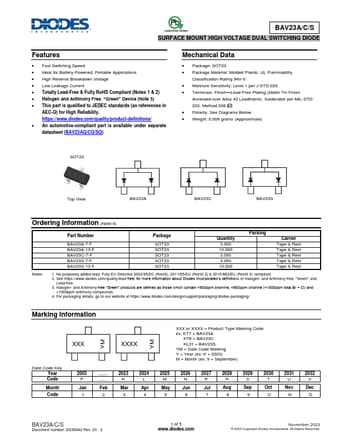

Preview of BAV23A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAV23A
Manufacturer
DIODES ↗
File Size
575.91 KB
Datasheet
BAV23A-Diodes.pdf
Description
SURFACE MOUNT HIGH VOLTAGE DUAL SWITCHING DIODE
