BAW101 - DUAL SURFACE MOUNT SWITCHING DIODE

Diodes

📥 Download Datasheet

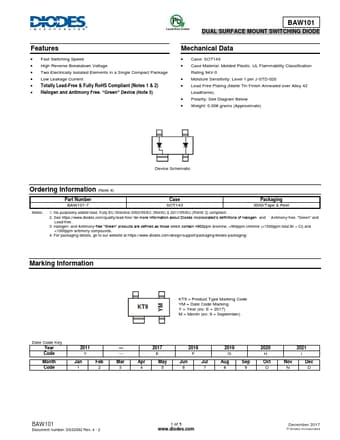

BAW101 Datasheet Preview — Preview of BAW101 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BAW101
Manufacturer	DIODES ↗
File Size	272.21 KB
Description	DUAL SURFACE MOUNT SWITCHING DIODE
Datasheet	BAW101-Diodes.pdf

BAW101 Product details

Features

Fast Switching Speed.
High Reverse Breakdown Voltage.
Two Electrically Isolated Elements in a Single Compact Package.
Low Leakage Current.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) BAW101 DUAL.
