BAW100 - Silicon Switching Diode Array (For high-speed switching Electrically insulated diodes)

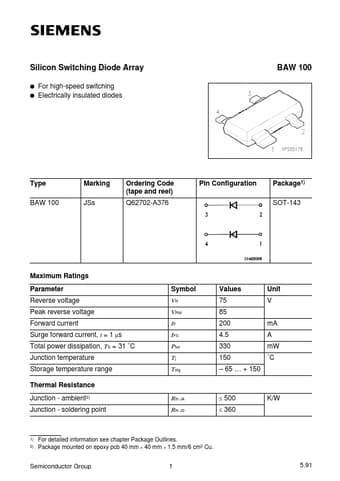

Silicon Switching Diode Array For high-speed switching q Electrically insulated diodes q BAW 100 Type BAW 100 Marking JSs Ordering Code (tape and reel) Q62702-A376 Pin Configuration Package1) SOT-143 Maximum Ratings Parameter Reverse voltage Peak reverse voltage Forward current Surge forward current, t = 1 µs Total power dissipation, TS = 31 ˚C Junction temperature Storage temperature range Thermal Resistance Junction - ambient2) Junction - soldering point Rth JA Rth JS ≤ ≤ Symbol VR VRM
