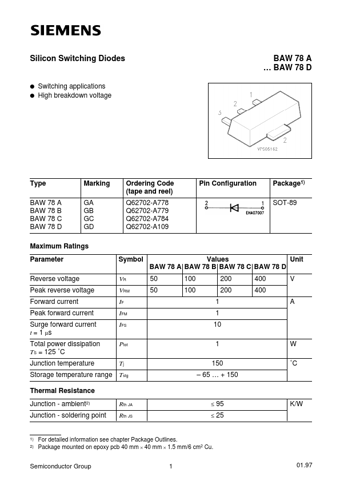

Silicon Switching Diodes
BAW 78 A … BAW 78 D
Switching applications q High breakdown voltage
q
Type BAW 78 A BAW 78 B BAW 78 C BAW 78 D
Marking GA GB GC GD
Ordering Code (tape and reel) Q62702-A778 Q62702-A779 Q62702-A784 Q62702-A109
Pin Configuration
Package1) SOT-89
Maximum Ratings Parameter Reverse voltage Peak reverse voltage Forward current Peak forward current Surge forward current t = 1 µs Total power dissipation TS = 125 ˚C Junction temperature Symbol VR VRM IF IFM IFS Ptot Tj Values Unit BAW 78 A BAW 78 B BAW 78 C BAW 78 D 50 50 100 100 1 1 10 1 150 – 65 … + 150 W ˚C 200 200 400 400 A V
Storage temperature range Tstg Thermal Resistance Junction - ambient2) Junction - soldering point Rth JA Rth JS
≤ ≤
95 25
K/W
1) 2)
For detailed information see chapter Package Outlin
