BAW78A-BAW78D Silicon Switching Diodes (Switching applications High breakdown voltage)

Silicon Switching Diodes BAW 78 A … BAW 78 D Switching applications q High breakdown voltage q Type BAW 78 A BAW 78 B BAW 78 C BAW 78 D Marking GA GB GC GD Ordering Code (tape and reel) Q62702-A778 Q62702-A779 Q62702-A784 Q62702-A109 Pin Configuration Package1) SOT-89 Maximum Ratings Parameter Reverse voltage Peak reverse voltage Forward current Peak forward current Surge forward current t = 1 µs Total power dissipation TS = 125 ˚C Junction temperature Symbol VR VRM IF IFM IFS Ptot Tj Va.

BAW78A-BAW78D_SiemensSemiconductorGroup.pdf

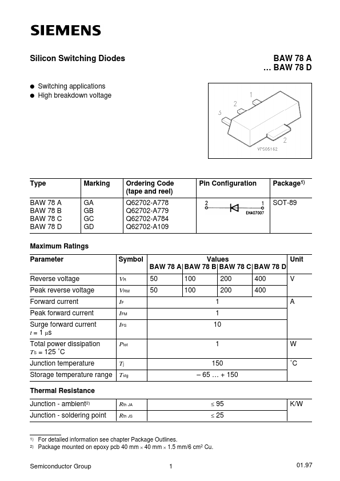

BAW78A-BAW78D Datasheet Preview — Preview of BAW78A-BAW78D PDF

Datasheet Details

Part number:

BAW78A-BAW78D

Manufacturer:

Siemens Group

File Size:

86.03 KB

Description:

Silicon switching diodes (switching applications high breakdown voltage).
