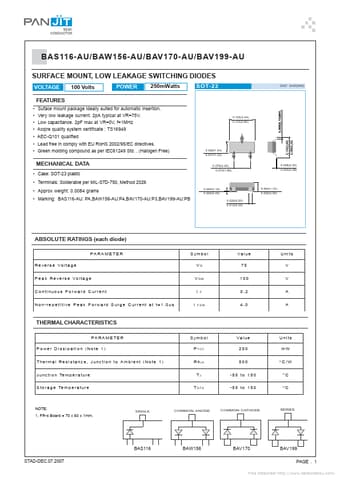

BAW156-AU Datasheet, Diodes, Pan Jit International

BAW156-AU Features

• Diodes
• Suface mount package ideally suited for automatic insertion. Very low leakage current. 2pA typical at VR=75V. Low capacitance. 2pF max at VR=0V,

PDF File Details

Part number:

BAW156-AU

Manufacturer:

Pan Jit International

File Size:

283.00kb

Download:

📄 Datasheet

Description:

Low leakage switching diodes.

BAW156-AU Application

• Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in
