BAW101 Datasheet - Siemens Group

BAW101 Silicon Switching Diode

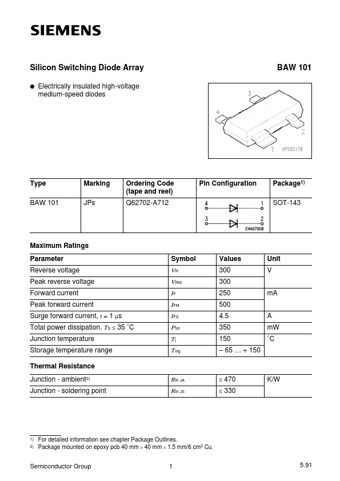

Silicon Switching Diode Array q BAW 101 Electrically insulated high-voltage medium-speed diodes Type BAW 101 Marking JPs Ordering Code (tape and reel) Q62702-A712 Pin Configuration Package1) SOT-143 Maximum Ratings Parameter Reverse voltage Peak reverse voltage Forward current Peak forward current Surge forward current, t = 1 µs Total power dissipation, TS ≤ 35 ˚C Junction temperature Storage temperature range Thermal Resistance Junction - ambient2) Junction - soldering point Rth JA Rth .

BAW101_SiemensSemiconductorGroup.pdf

Preview of BAW101 PDF
BAW101 Datasheet Preview Page 2 BAW101 Datasheet Preview Page 3

Datasheet Details

Part number:

BAW101

Manufacturer:

Siemens Group

File Size:

61.60 KB

Description:

Silicon switching diode.
