BAW56DW SURFACE MOUNT SWITCHING DIODES

BAW56DW Description

BAS16TW/BAW56DW/BAV70DW/BAV99S SURFACE MOUNT SWITCHING DIODES VOLTAGE 100 Volts POWER 200mWatts .

BAW56DW Features

* Fast switching speed.
* Surface mount package Ideally Suited for Automatic insertion
* High Conductance
* In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA
* Case: SOT-363, Plastic
* Terminals: Solderable per MIL-STD-750, Method 2026

📥 Download Datasheet

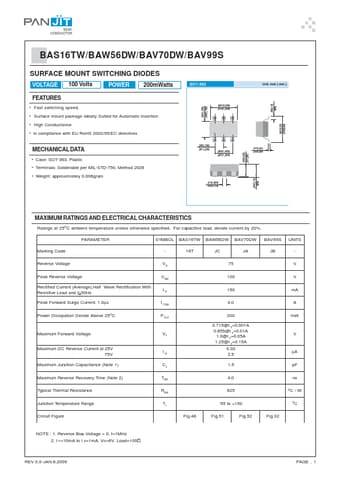

Preview of BAW56DW PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAW56DW
Manufacturer
Pan Jit International
File Size
120.17 KB
Datasheet
BAW56DW-PanJitInternational.pdf
Description
SURFACE MOUNT SWITCHING DIODES
