BAW156W - LOW LEAKAGE SWITCHING DIODES

Datasheet Summary

Features

  • Suface mount package ideally suited for automatic insertion.
  • Very low leakage current. 2pA typical at VR=75V.
  • Low capacitance. 4pF max at VR=0V, f=1MHz.
  • In compliance with EU RoHS 2002/95/EC directives .087(2.2) .070(1.8) .054(1.35) .045(1.15).

📥 Download Datasheet

Datasheet preview – BAW156W

Datasheet Details

Part number BAW156W
Manufacturer Pan Jit International
File Size 134.34 KB
Description LOW LEAKAGE SWITCHING DIODES
Datasheet download datasheet BAW156W Datasheet
Additional preview pages of the BAW156W datasheet.

📁 Similar Datasheet

  • BAW156 - SURFACE MOUNT SWITCHING DIODES (DC COMPONENTS)
  • BAW156 - SURFACE MOUNT SWITCHING DIODES (TIPTEK)
  • BAW156 - DUAL SURFACE MOUNT LOW LEAKAGE DIODE (Diodes)
  • BAW156 - Silicon Low Leakage Diode (Infineon)
  • BAW156 - Low-leakage double diode (Kexin)
  • BAW156 - 250mW 75Volts Dual Switching Diode (MCC)
  • BAW156 - Low-leakage double diode (Philipss)
  • BAW156 - Low-leakage double diode (nexperia)
  • BAW156 - Three Terminals SMD Low Leakage Switching Diode (TAITRON)
  • BAW156L - Surface Mount Low Leakge Diode (MSV)
Other Datasheets by Pan Jit International
  • BAW156 - LOW LEAKAGE SWITCHING DIODES
  • BAW156-AU - LOW LEAKAGE SWITCHING DIODES
  • BAW56-AU - SURFACE MOUNT SWITCHING DIODES
  • BAW56DW - SURFACE MOUNT SWITCHING DIODES

Full PDF Text Transcription

Click to expand full text

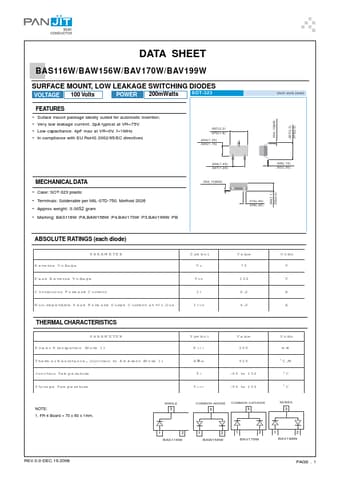

DATA SHEET BAS116W/BAW156W/BAV170W/BAV199W SURFACE MOUNT, LOW LEAKAGE SWITCHING DIODES VOLTAGE 100 Volts POWER 200mWatts SOT-323 FEATURES • Suface mount package ideally suited for automatic insertion. • Very low leakage current. 2pA typical at VR=75V. • Low capacitance. 4pF max at VR=0V, f=1MHz • In compliance with EU RoHS 2002/95/EC directives .087(2.2) .070(1.8) .054(1.35) .045(1.15) MECHANICAL DATA • Case: SOT-323 plastic • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx weight: 0.0052 gram • Marking: BAS116W :PA,BAW156W :P4,BAV170W :P3,BAV199W :PB .056(1.40) .047(1.20) .004(.10)MAX. .044(1.1) .035(0.9) .004(.10)MIN. .087(2.2) .078(2.0) Unit: inch (mm) .006(.15) .002(.05) .016(.40) .008(.
