DCX142JH, DCX122LH Datasheet - Diodes

DCX142JH Dual Transistor

DCX142JH Features

* Epitaxial Planar Die Construction

* Built-In Biasing Resistors

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3) P/N DCX122LH DCX142JH DCX122TH DCX142TH R1 (NOM) 0.22K 0.47K 0.22K 0.47K R2 (NOM) 10K 10K OPEN OPEN

DCX122LH_Diodes.pdf

This datasheet PDF includes multiple part numbers: DCX142JH, DCX122LH. Please refer to the document for exact specifications by model.

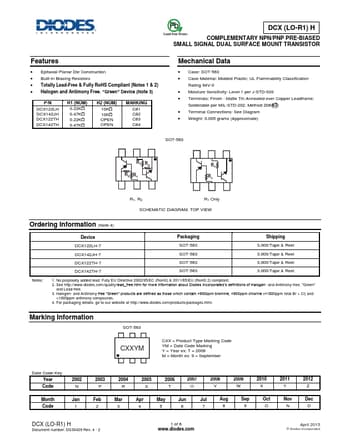

DCX142JH Datasheet Preview Page 2 DCX142JH Datasheet Preview Page 3

Datasheet Details

Part number:

DCX142JH, DCX122LH

Manufacturer:

DIODES ↗

File Size:

320.96 KB

Description:

Dual transistor.

Note:

This datasheet PDF includes multiple part numbers: DCX142JH, DCX122LH.
Please refer to the document for exact specifications by model.
