DCX142JU, DCX142TU - DUAL TRANSISTOR

Diodes

📥 Download Datasheet

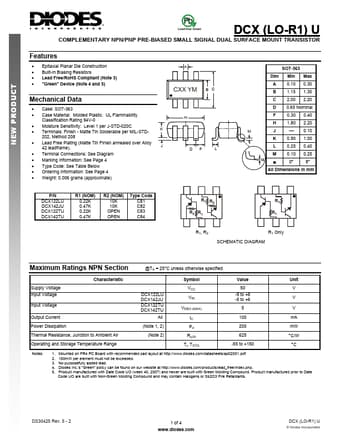

DCX142JU Datasheet Preview — This datasheet PDF includes multiple part numbers: DCX142JU, DCX142TU. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DCX142JU, DCX142TU
Manufacturer	DIODES ↗
File Size	149.42 KB
Description	DUAL TRANSISTOR
Datasheet	DCX142TU-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: DCX142JU, DCX142TU. Please refer to the document for exact specifications by model.

DCX142JU Product details

Features

Epitaxial Planar Die Construction.
Built-In Biasing Resistors.
Lead Free/RoHS Compliant (Note 3).
"Green" Device (Note 4 and 5) Mechanical Data.
Case: SOT-363.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminals: Finish - Matte Tin Solderable per MIL-STD- 202, Method 208.
Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadf.
