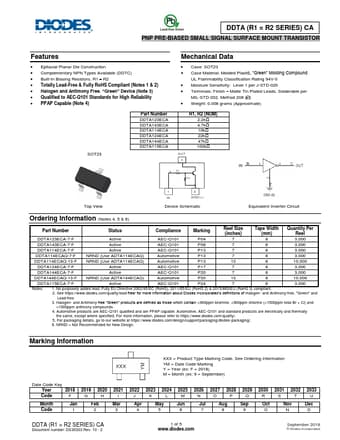

DDTA114ECA, DDTA123ECA - PRE-BIASED SMALL SIGNAL SURFACE MOUNT PNP TRANSISTOR

Diodes

Datasheet Details

Part number	DDTA114ECA, DDTA123ECA
Manufacturer	DIODES
File Size	406.22 KB
Description	PRE-BIASED SMALL SIGNAL SURFACE MOUNT PNP TRANSISTOR
Datasheet	DDTA123ECA-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: DDTA114ECA, DDTA123ECA. Please refer to the document for exact specifications by model.

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTC).
Built-In Biasing Resistors, R1 R2.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4) Mechanical Data.
Case: SOT23.
Case Material: Molded Plastic, “Green” Molding Compound UL Flammability Classification Rating 94V-0.
Moisture Sensitivit.
