DDTC113TE NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

DDTC113TE Description

DDTC (R1-ONLY SERIES) E NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR .

DDTC113TE Features

* Epitaxial Planar Die Construction
* Complementary PNP Types Available (DDTA)
* Built-In Biasing Resistor, R1 Only
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free "Green" Device (Note 3)
* Qualified to AEC-Q101 Standards for High Reliabil

📥 Download Datasheet

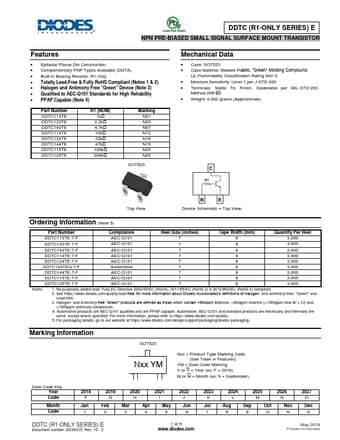

Preview of DDTC113TE PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DDTC113TE
Manufacturer
DIODES ↗
File Size
422.85 KB
Datasheet
DDTC113TE-Diodes.pdf
Description
NPN PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
