DDTC113TLP 50V NPN PRE-BIASED SMALL SIGNAL TRANSISTOR

DDTC113TLP Description

DDTC113TLP 50V NPN PRE-BIASED SMALL SIGNAL TRANSISTOR IN DFN1006 Product Summary Part Number DDTC113TLP R1 (NOM) 1kΩ Marking N4 .

DDTC113TLP Features

* Epitaxial Planar Die Construction
* Ultra-Small Leadless Surface Mount Package
* Ideally Suited for Automated Assembly Processes
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. "Green" Device (Note 3)
* Qualified to AEC-Q101 Standards

📥 Download Datasheet

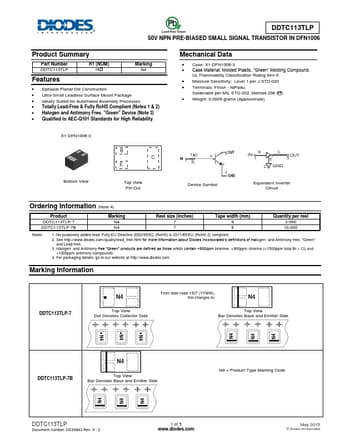

Preview of DDTC113TLP PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DDTC113TLP
Manufacturer
DIODES ↗
File Size
329.46 KB
Datasheet
DDTC113TLP-Diodes.pdf
Description
50V NPN PRE-BIASED SMALL SIGNAL TRANSISTOR
