DMC6040SSD - MOSFET

Description

This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

DC-DC Converters Power Management Functions Bac

Features

  • Low Input Capacitance.
  • Low On-Resistance.
  • Fast Switching Speed.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.

📥 Download Datasheet

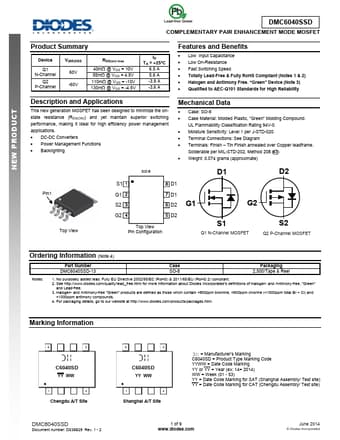

Datasheet preview – DMC6040SSD

📁 Similar Datasheet

Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
NAEDWVAPNRCOED IUNCFTORMATION DMC6040SSD COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET Product Summary Device Q1 N-Channel Q2 P-Channel V(BR)DSS 60V -60V RDS(on) max 40mΩ @ VGS = 10V 55mΩ @ VGS = 4.5V 110mΩ @ VGS = -10V 130mΩ @ VGS = -4.5V ID TA = +25°C 6.5 A 5.6 A -3.9 A -3.6 A Features and Benefits • Low Input Capacitance • Low On-Resistance • Fast Switching Speed • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q101 Standards for High Reliability Description and Applications This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
