DMN2501UFB4 - N-Channel MOSFET

Diodes

📥 Download Datasheet

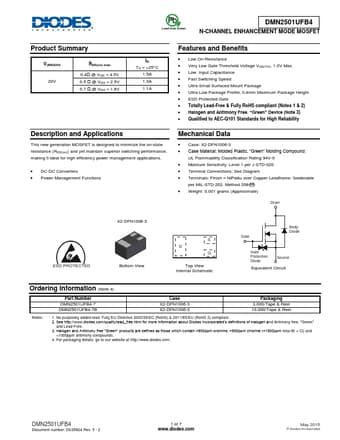

DMN2501UFB4 Datasheet Preview — Preview of DMN2501UFB4 PDF

Datasheet Details

Part number	DMN2501UFB4
Manufacturer	DIODES
File Size	549.94 KB
Description	N-Channel MOSFET
Datasheet	DMN2501UFB4-Diodes.pdf

DMN2501UFB4 Product details

Description

and Applications This new generation MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. DC-DC Converters Power Management Functions Mechanical Data Case: X2-DFN1006-3 Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections:

Features

Low On-Resistance.
Very Low Gate Threshold Voltage VGS(TH), 1.0V Max.
Low Input Capacitance.
Fast Switching Speed.
Ultra-Small Surfaced Mount Package.
Ultra-Low Package Profile, 0.4mm Maximum Package Height.
ESD Protected Gate.
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
